CD5030,LM5030 100V Push-Pull Current Mode PWM Controller Chip

CD5030 is a high-voltage pulse width modulation(PWM) push-pull control chip, which can realize mostof the push-pull topology power output conversion.Based on current mode control and simplified thedes...
Model:
  • CD5030
  • Brand: MK
  • Price Indication: 10.0       Stock: 99999
  • Product Description:

    CD5030 is a high-voltage pulse width modulation(PWM) push-pull control chip, which can realize mostof the push-pull topology power output conversion.Based on current mode control and simplified thedesign of loop compensation.The CD5030 includes a high-voltage start-up regulatorthat operates over a wide input range of up to 100V.The PWM chip is specially designed for high-speedoscillators, with a frequency range of up to 1MHz anda total propagation delay of less than 100ns.Additionalfeatures include: error amplifier, precision reference,under-voltage protection, cycle-by-cycle over-currentprotection, slope compensation, soft-start, oscillatorsynchronization capability, and thermal shutdown.

    Internal High-Voltage Start-Up Regulator

    Single Resistor Oscillator Setting

    Synchronizable

    Error Amplifier

    High Precision Reference Voltage Regulation

    Adjustable Softstart

    Dual Mode Overcurrent Protection

    Slope Compensation

    1.5A Peak Gate Drivers

    Thermal Shutdown

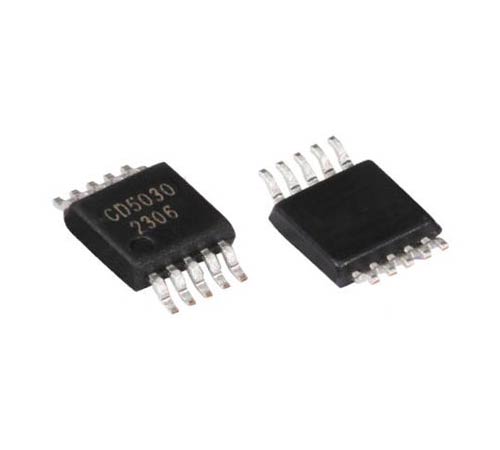

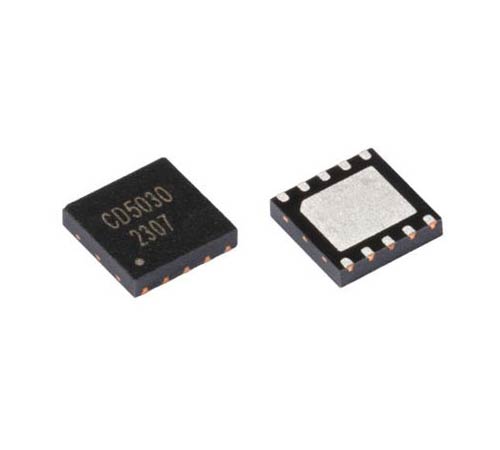

    Package:VSSOP10、WSON10




    ModelFunctionControl ModeInput VoltageTemperatureMaximum DutyPackaging formCORR TI
    CD5022Current mode boost, SEPIC And flyback control.Based on current mode control6V-60V-40~1250.9VSSOP-10LM5022
    CD5021Off-line PWM PW control
    8V-30V-40~1250.85VSSOP-8LM5021
    CD5041Cascade PWM control
    15V-90V-40~125TSSOP-16/WSON-16LM5041
    CD5032Current-mode high voltage PWM control
    13V-100V-40~1250.76TSSOP-16LM5032
    CD5020Current-mode high voltage PWM control
    13V~80V-40~1250.8VSSOP-10LM5020
    CD5020ACurrent-mode high voltage PWM control
    13V~90V-40~1250.8VSSOP-10/WSON-10LM5020A
    CD5026Current-mode active clamping PWM control
    13V~100V-40~1250.76TSSOP-16/WSON-16LM5026
    CD5030Current-mode high-voltage PWM push-pull control
    14V~90V-40~1250.5VSSOP-10/WSON-10LM5030
    CD5025Voltage source active clamping PWM controlFeedforward voltage mode control13V~100V-40~1250.8TSSOP-16/WSON-16LM5025
    CD5035Half-bridge topology power conversion PWM controlVoltage control mode13V~100V-40~1250HTSSOP-20/WQFN-24LM5035
