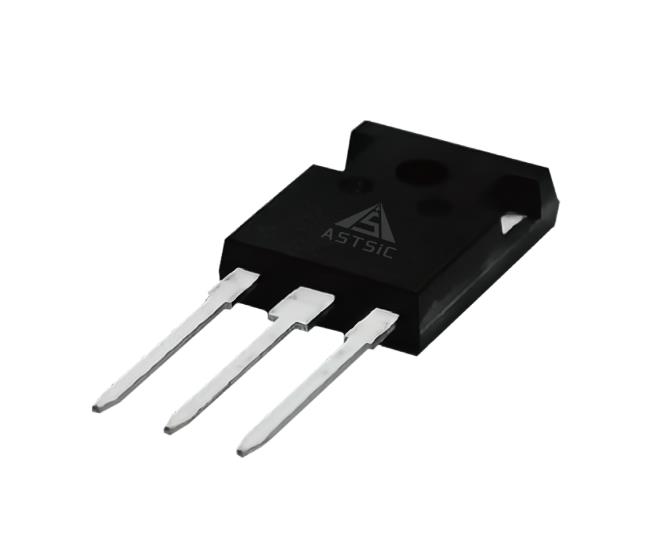

ASC100N1700,1700V 國產SiC碳化硅MOS管 車規級 100A 40A 5A
產品描述：

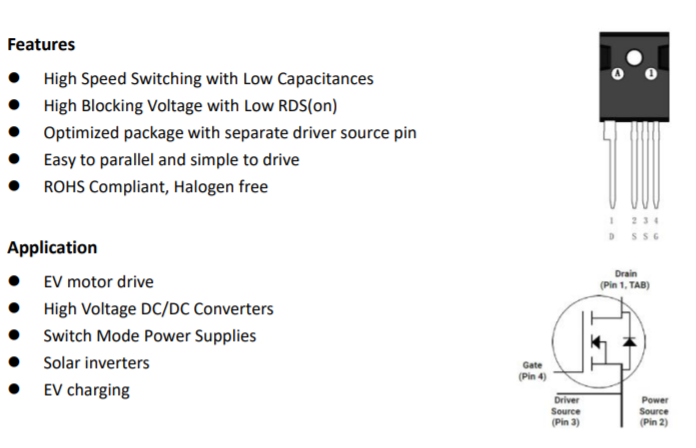

碳化硅(SiC) MOSFET使用一種全新技術，與硅相比，該技術提供了卓越的開關性能和更高的可靠性。此外，低導通電阻和緊湊的芯片尺寸確保了低電容和柵極電荷。因此，系統優勢包括最高效率、更快的工作頻率、更高的功率密度、更低的EMI和更小的系統尺寸。

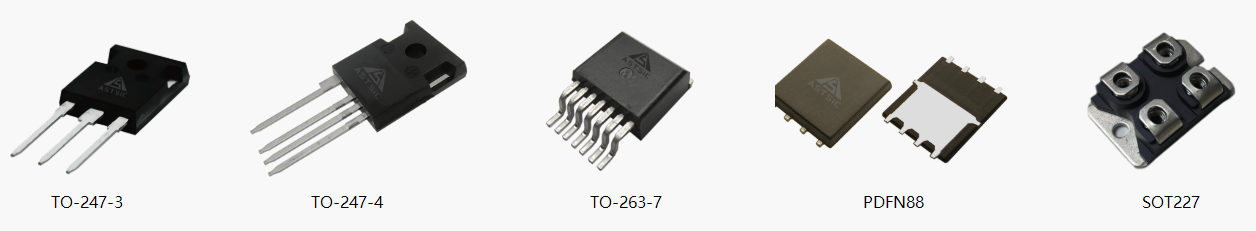

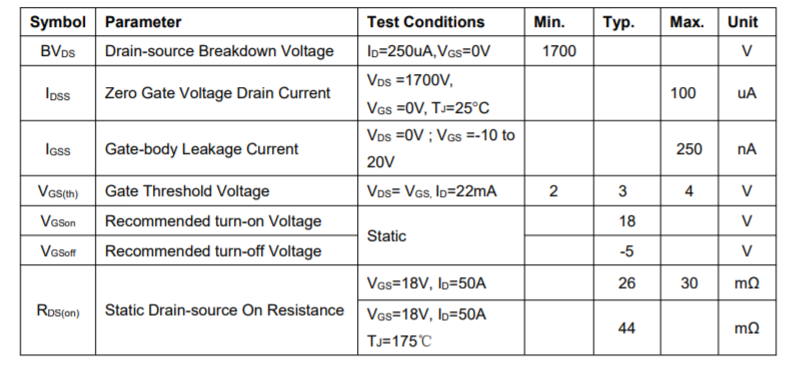

| Model Name | Current | R(on) | Vgs | Package | Status |
| ASC100N1700MT3 | 100A | 25mohm | 18V | TO-247-3 | Product |
| ASC100N1700MT3PB | 100A | 25mohm | 15V | TO-247-3 | Product |
| ASC100N1700MT4 | 100A | 25mohm | 18V | TO-247-4 | Product |
| ASC100N1700MT4i | 100A | 25mohm | 18V | TO-247-4 | Product |
| ASC100N1700MT4L | 100A | 25mohm | 18V | TO-247-4 | Product |
| ASC100N1700MT4PB | 100A | 25mohm | 15V | TO-247-4 | Product |
| ASC40N1700MT3 | 40A | 72mohm | 18V | TO-247-3 | Product |
| ASC40N1700MT4 | 40A | 72mohm | 18V | TO-247-4 | Product |
| ASC5N1700MT3PB | 5A | 750mohm | 12V | TO-247-3 | Product |
| ASC5N1700MT7PB | 5A | 750mohm | 12V | TO-263-7 | Product |
| ASC1N1700MF3PB | 1A | 10000mohm | 12V | TO-220F | Product |
