RMF65R022FD N溝道 650v 105A 超結功率MOS管

N溝道 650v 105A 0.022Ω 超結功率MOSFET

RMF65R022FD

品牌：亞成微-Reactor

參考價：8.66 庫 存：99999++

數 量：

產品描述：

Part Number	VDS (V)	ID (A) 25℃	PD(W) 25℃	RDS(ON)(mΩ) (VGS=10V)（Max）	Qg(nC)(VGS=10V) （Typ）	VGS(V)	VGS(th)(V) （Typ）	Package
RMC65R280FD	650	15	32	280	15.6	30	3.5	TO-220F
RMC65R1K0SN	650	4	30	1000	9.1	30	3.3	TO-220F
RMG65R1K0SN	650	4	37	1000	9.1	30	3.3	TO-251
RMA65R1K0SN	650	4	37	1000	9.1	30	3.3	TO-252
RMC65R650SN	650	7	32	650	13.3	30	3.3	TO-220F
RMP65R650SN	650	7	6.9	650	13.3	30	3.3	SOT-223
RMG65R650SN	650	7	63	650	13.3	30	3.3	TO-251
RMD65R650SN	650	7	63	650	13.3	30	3.3	PDFN5*6
RMA65R650SN	650	7	63	650	13.3	30	3.3	TO-252
RMC65R600BN	650	7	32	600	13.3	30	3	TO-220F
RMG65R600BN	650	7	63	600	13.3	30	3	TO-251
RMA65R600BN	650	7	63	600	13.3	30	3	TO-252
RMC65R380SN	650	11	33	380	19.2	30	3.3	TO-220F
RMK65R380SN	650	11	118	380	19.2	30	3.3	PDFN8*8
RME65R380SN	650	11	125	380	19.2	30	3.3	TO-263
RMD65R380SN	650	11	118	380	19.2	30	3.3	PDFN5*6
RMA65R380SN	650	11	118	380	19.2	30	3.3	TO-252
RMC65R340FD	650	15	32	340	15.6	30	3.5	TO-220F
RMC65R280SN	650	15	34	280	26	30	3.3	TO-220F
RMK65R280SN	650	15	132	280	26	30	3.3	PDFN8*8
RME65R280SN	650	15	158	280	26	30	3.3	TO-263
RMD65R280SN	650	15	132	280	26	30	3.3	PDFN5*6
RMA65R280SN	650	15	132	280	26	30	3.3	TO-252
RMF65R190SF	650	20	202	190	38.2	30	3.3	TO-247
RMK65R190SF	650	20	202	190	38.2	30	3.3	PDFN8*8
RMC65R190SF	650	20	34	190	38.2	30	3.3	TO-220F
RME65R190SF	650	20	202	190	38.2	30	3.3	TO-263
RMF65R099SF	650	36	304.8	99	81	30	3.5	TO-247
RMC65R099SF	650	36	35	99	81	30	3.5	TO-220F

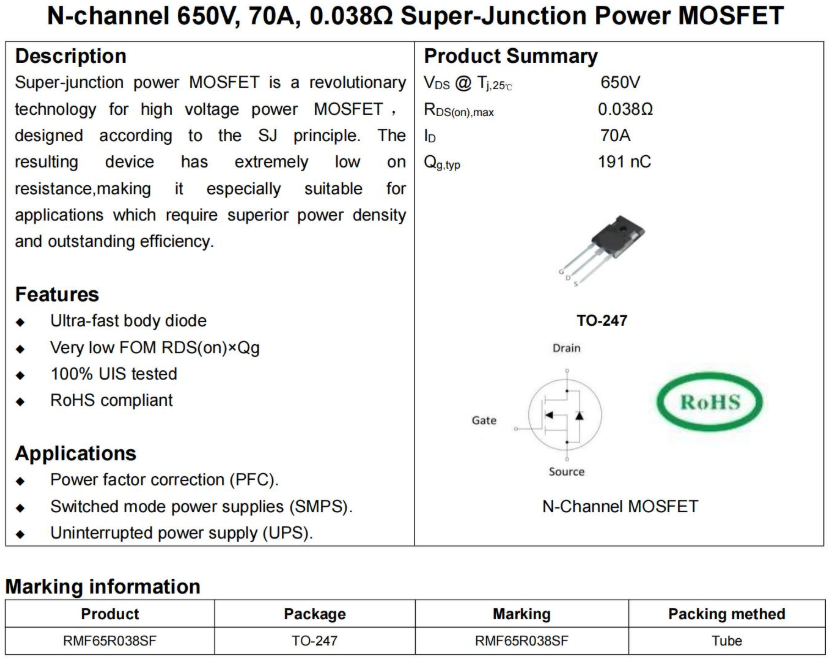

RMF65R038SF	650	70	694	38	191	30	4	TO-247
